Advantage of Anti CERAMIFLEX：
l Maximum operation temperature：1430℃

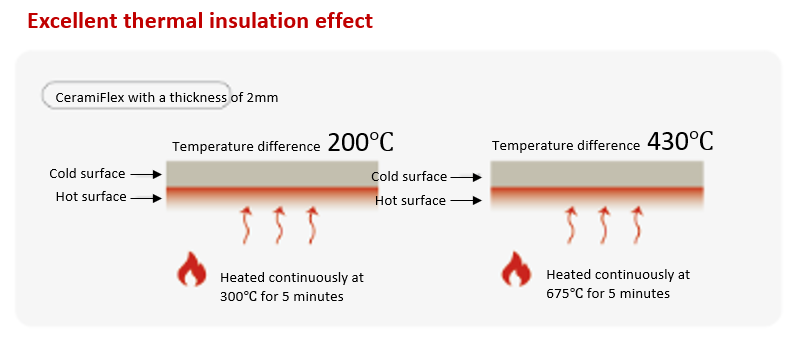

l Ultra-low thermal conductivity：＜0.06 （500℃）
l Better thermal conductivity at high temperature than traditional aerogel
l Low heat capacity, low heat storage, excellent thermal shock resistance
l Class A Fire protection , asbestos-free and formaldehyde-free
l High voltage insulation or waterproof coating can be added
|
Product |
AT CERAMIFLEX 1200 |
AT CERAMIFLEX 1400 |
|
|
Classification temperature，℃ |
1260 |
1350 |
1430 |
|
Long-term operation temperature，℃ |
1000 |
1200 |
1300 |
|
Color |
White |
White |
White |
|
Bulk Density，kg/m3 |
250-350 |
250-350 |
|
|
Compression strength（MPa） |
0.4 |
0.4 |
|
|
Tensile strength（PSI） |
≥120 |
≥120 |
|
|

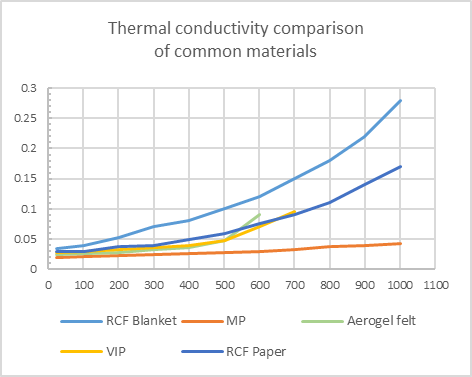

Thermal conductivity |
Mean temperature, W/m-k |
||
|
25（℃） |
0.025 |
||
|
100（℃） |
0.030 |
||
|
300（℃） |
0.042 |
||
|
500（℃） |
0.060 |
||
|
Standard size (Thickness) |
1-10mm |
||
|
Standard size (Width) |
600、1000、1200 |
||
|
★ Data are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purposes. Refer to more information about fire protection, thermal management and electrical safety for new energy industry, please contact our sales and technical department. |
|||
Pyroguard Refractory Technology Co.Ltd.
