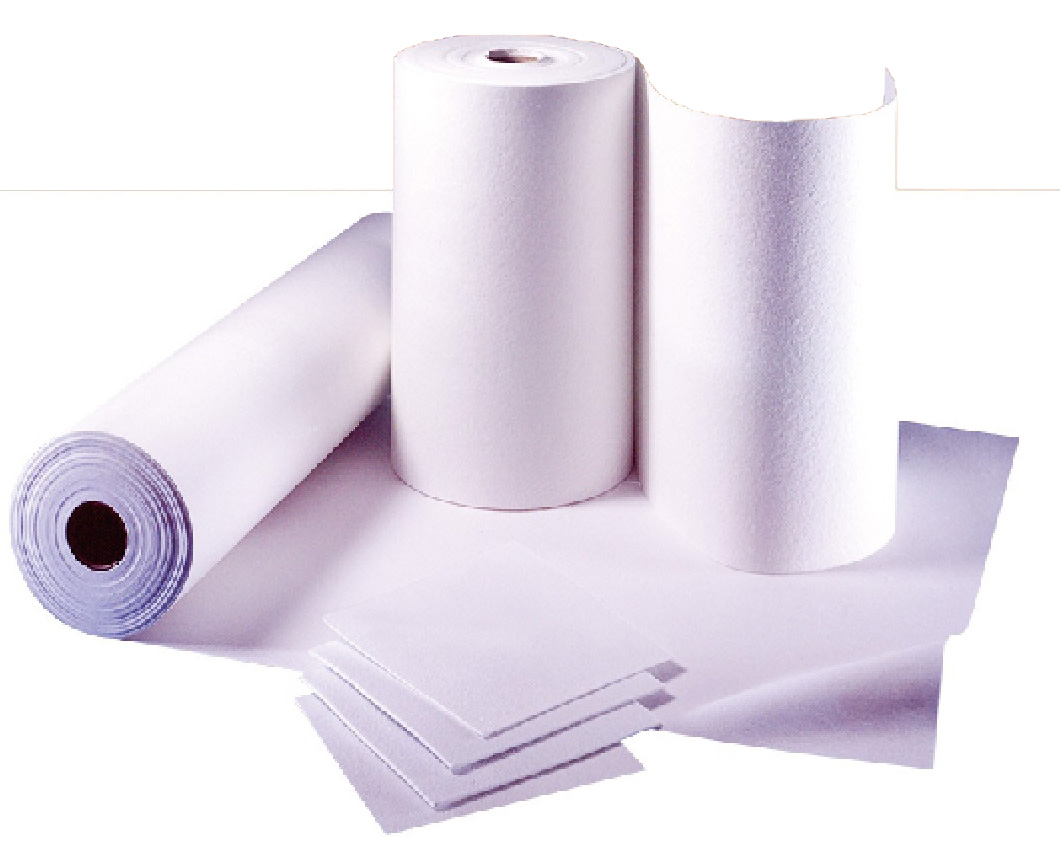

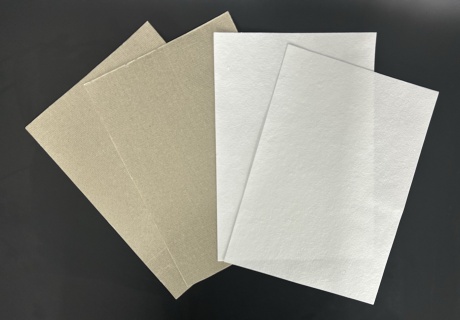

Fireproof heat-absorbing felt

The fireproof heat-absorbing felt is specially designed for high-temperature and severe fire exposure conditions, and is produced from special engineering fiber cotton and heat-absorbing materials. The fiber felt is combined with phase-change heat-absorbing materials, which release chemically bound water at high temperatures to delay temperature rise and gain precious rescue time. The material has the characteristics of fireproof, flame-retardant, heat-insulating, soft and cuttable, good resilience, low thermal conductivity, heat shock resistance, etc., and meets the UL94-VO standard.

Caption
Product Name	AT F1000 Fireproof Heat-Absorbing Felt
Classification Temperature, ℃	1260
Long-term Service Temperature, ℃	1000
Color	White
Density, kg/m³	280-800
Loss on Ignition (LOI), %wt	6-12%
Tensile Strength, PSI	≥100
Thermal Conductivity, Average W/(m·K)
25℃	0.035
100℃	0.045
300℃	0.055
500℃	0.069
Chemical Composition	SiO₂: 35-50%; Al₂O₃: 40-60%; Others: 5-10%
Standard Thickness	1-10 mm
Standard Width	600 mm, 1000 mm, 1200 mm or Customized

● Exclusive phase-change material technology: Significantly delays temperature rise by releasing chemically bound water at high temperatures, and mitigates smoke toxicity and flame spread through special smoke-suppressing fillers.
● Ultra-thin flexible design, freely cuttable and bendable, suitable for high-energy-density and complex application scenarios.
● Ultra-high temperature resistance of 1260°C/1430°C, capable of withstanding thermal runaway high-temperature projectiles without being penetrated.
● No powder shedding, ready for direct use, saving extra packaging costs.

● New Energy Core Protection
Power Battery Packs: Thermal Insulation between Cells/Module Intervals
Energy Storage Systems: Fireproofing of Electrical Cabinet Interlayers to Suppress Thermal Spread
Charging Piles/Charging Stations: Thermal Shock Protection for High-Voltage Components

●Industrial High-Risk Scenarios
Nuclear Power Plants: Cable Trays
Chemical Plants: High-Temperature Emergency Protection Layers for Reactors/Pipelines
Power Systems: Fireproof Isolation of Substation Equipment
Oil and Gas Storage and Transportation: Explosion-Proof Thermal Insulation Linings for LNG Tanks

●Special Field Breakthrough
Aerospace: Transient Heat Absorption in Battery Compartments/Engine Compartments
Military Equipment: Fire and Explosion Suppression Systems for Ammunition Bays
Rail Transit: Fire Barriers for Lithium Battery Compartments

●Electronic & Electrical Upgrades
Data Centers: Thermal Runaway Protection for High-Density Battery Cabinets
Consumer Electronics: Thermal Buffer Layers for Fast-Charging Devices
